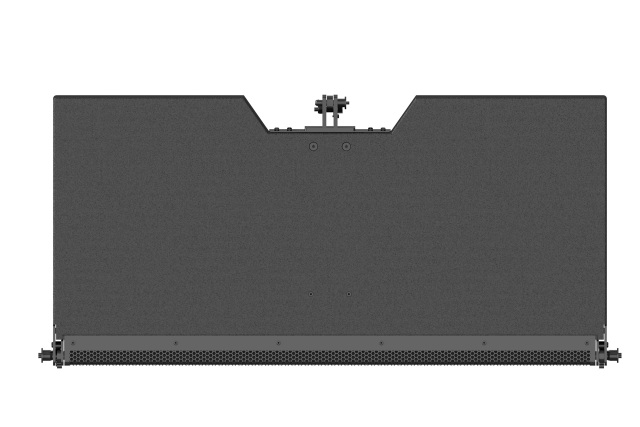

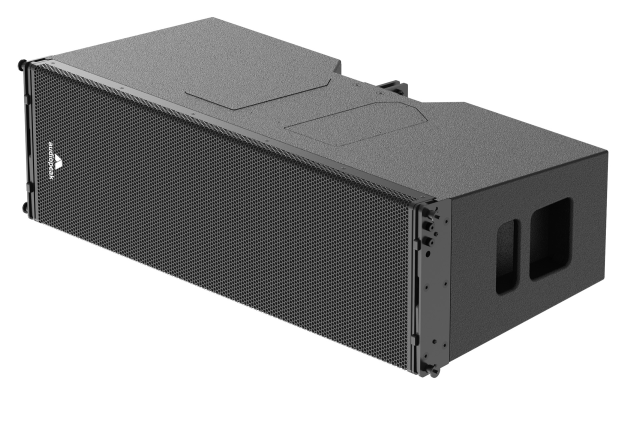

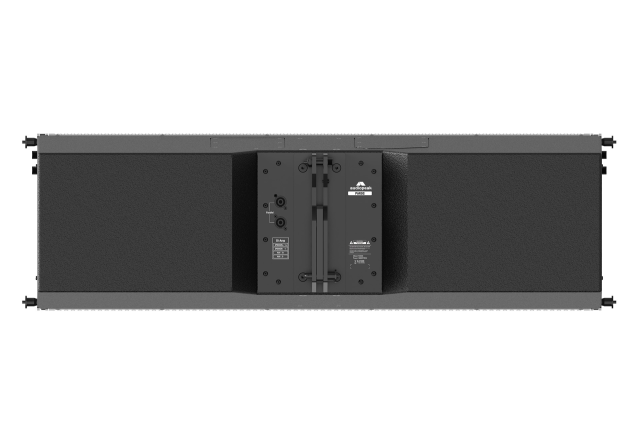

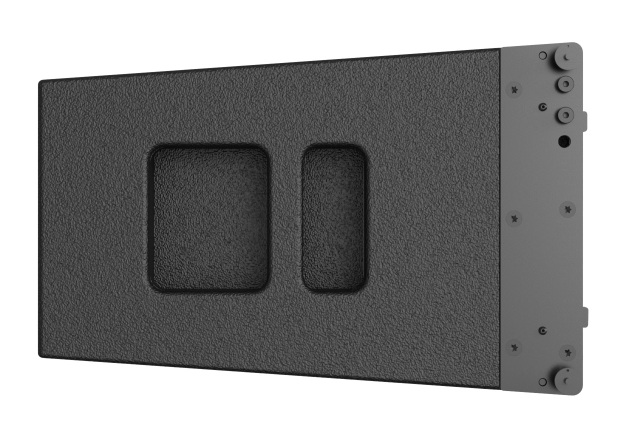

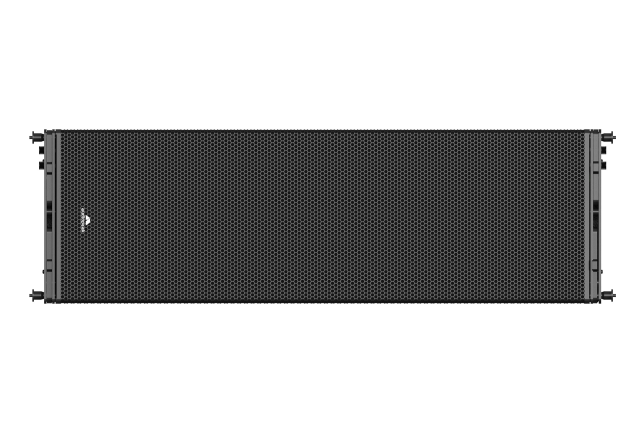

Venue series line array system full range modules

Name: Venue series line array system full range modules
Brand: Tinboo audio -Pro audio expert
Availability: InStock
Rating: 5 (1 reviews)

AUDIOPEAK Venue series full range modules feature: Frequency range 60-20KHz, element impedance 4 ohm, 90°Horizontal X 8°, Sensitivity 102dB, power 1800w, speakon in/out, Bass: 2x12 inch, Midrange 4x6 inch, treble 2x3inch, neodymium transducers, birch plywood with 2mm steel grill, 71kg.

Get A Quote

OVERVIEW

With years of in-depth dedication to the professional audio industry, Audiopeak upholds the core mission of"Restoring the Authenticity of Original Sound, Empowering Every Auditory Feast" . We are committed to delivering high-quality, highly reliable professional audio products and integrated sound reinforcement solutions for global users. Always staying true to our acoustic aspiration, we integrate cutting-edge technology with exquisite craftsmanship. Every procedure, from product R D and component selection to production and testing, is subject to stringent quality control, aiming to deliver the purest and most immersive sound experience.

Specifications
Download

Technical Specifications
Type	Passive full range array speaker
Frequency range	(-10 dB) 65 ~ 20KHz (-10dB).
Element impedance	4Ù
Directivity	90° Horizontal X 8° (Vertical, single soundbox).
Max Output spl	(1m) more than 137 dB.
Sensitivity	102 dB
Frequency division point	250 Hz / 900 Hz.
System Power	1800 Watt.
Signal Input Interface	1x Speakon.
Signal Output Interface	1x Speakon.
Speaker Unit: Bass	12“ Bass2 Midrange 6” Midrange4 Treble3” driver*2
Lifting: Adjustable	0, 0.5, 1, 2, 3, 4, 5, 6, 7, 8 degrees
Cabinet	Full Birch PLY
Mesh Cover	1,5 mm steel mesh.
Color	Black
Size	343 x 1152 x 536 mm (H x W x D).
Weight	68 Kg

123

The Sound That Defines a Successful Show

In a real live event,a sound system must do more than simply be loud. It needs to deliver:Clear and natural vocalsEven sound coverage across the audienceStrong and controlled low frequency performanceStable output for long working hoursThat is the value of a professional audio system. Whether for concerts, music festivals, touring events, or large-scale performances,consistent and controlled sound coverage is the key to a successful show.

Where Sound Becomes Experience

When the lights come onand the music begins, the audience is not just listening to sound —they are feeling the energy. Clear vocals that reach every corner,rich mids that bring music to life,and deep, powerful bass that hits the crowd with impact. A professional sound system does more than play music.It creates the atmosphere, drives the emotion,and turns a performance into a real experience. We do not just provide audio equipment.We provide sound solutions that make the whole event come alive.
