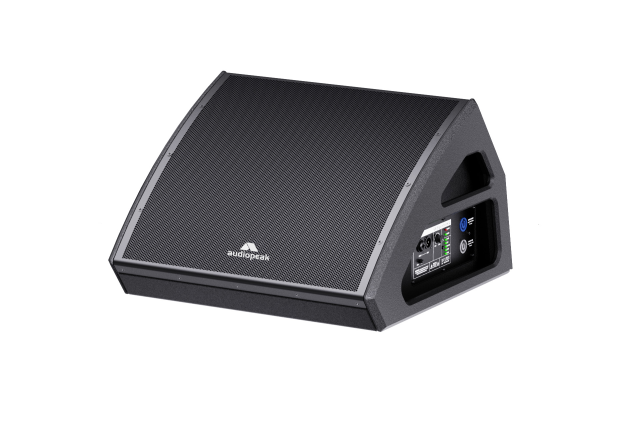

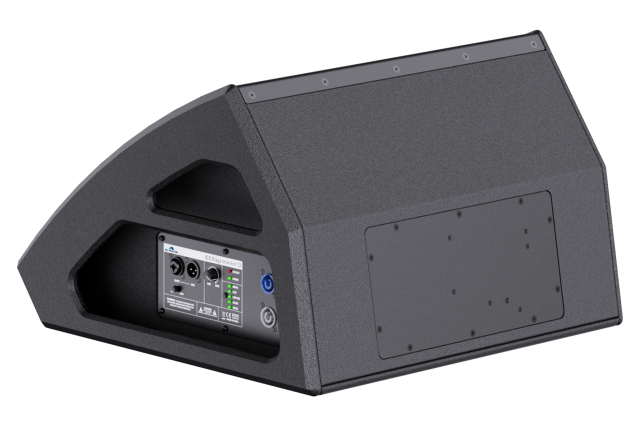

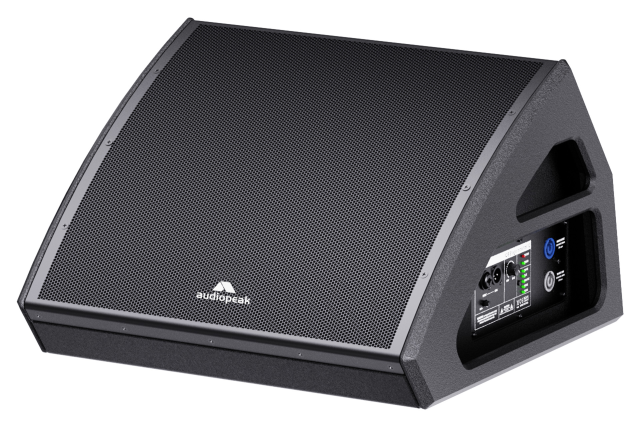

Mani -112A Stage Monitor loudspeaker

Mani series speaker is the high-end speaker in coaxial series, mainly used for stage monitoring.designed with DSP controlled wedge monitor speaker with high-output, reliability and supreme performance.First choice  for touring performance and fixed installation like Live sound reinforcement floor monitor, Touring systems, Clubs, Auditoriums, Theatres and Houses of Worship.

  • Mani -112A Stage Monitor loudspeaker
  • Mani -112A Stage Monitor loudspeaker
  • Mani -112A Stage Monitor loudspeaker
  • Mani -112A Stage Monitor loudspeaker

OVERVIEW

With years of in-depth dedication to the professional audio industry, Audiopeak upholds the core mission of"Restoring the Authenticity of Original Sound, Empowering Every Auditory Feast" . We are committed to delivering high-quality, highly reliable professional audio products and integrated sound reinforcement solutions for global users. Always staying true to our acoustic aspiration, we integrate cutting-edge technology with exquisite craftsmanship. Every procedure, from product R D and component selection to production and testing, is subject to stringent quality control, aiming to deliver the purest and most immersive sound experience.
  • Specifications

  • Download

Specifications
Type   Active DSP-controlled  loudspeaker
Frequency Response(-10dB) 55Hz-20kHz
Horizontal Coverage 60° x 90°
Maximum Calculated SPL/1M (Continuous/Peak) 122dB/128dB
HF Driver Customized driver, 1.75” voice coil and 1.0”exit
LF Driver Customized 1×12” driver, 2.0” voice coil
DSP
Processor 48kHz signal sampling frequency, FIR filtering
Presets FLAT, VOCAL, DRUM
AMPLIFIER
Amplifier Circuitry Class D
Power(RMS standards) 1100W
Peak Power 2200W
Frequency Response(1W 8Ω 2ch) 20Hz-20kHz(±0.5dB)
Total Harmonic Distortion (20Hz-20kHz, Rated power 8Ω) <0.05%
Signal Input Female XLR
Signal Output  Male XLR
Working Voltage 100V~130V or 220V~240V(±10%,50/60Hz)
Cabinet
Cabinet Material CNC machined plywood
Cabinet Color Black is the default color. customization
Speaker Dimension(W×H×D) 44,9 x 33,7 x 50,8 cm
Net Weight 16 kg
123
The Sound That Defines a Successful Show

The Sound That Defines a Successful Show

In a real live event,a sound system must do more than simply be loud. It needs to deliver:Clear and natural vocalsEven sound coverage across the audienceStrong and controlled low frequency performanceStable output for long working hoursThat is the value of a professional audio system. Whether for concerts, music festivals, touring events, or large-scale performances,consistent and controlled sound coverage is the key to a successful show.
Where Sound Becomes Experience

Where Sound Becomes Experience

When the lights come onand the music begins, the audience is not just listening to sound —they are feeling the energy. Clear vocals that reach every corner,rich mids that bring music to life,and deep, powerful bass that hits the crowd with impact. A professional sound system does more than play music.It creates the atmosphere, drives the emotion,and turns a performance into a real experience. We do not just provide audio equipment.We provide sound solutions that make the whole event come alive.
