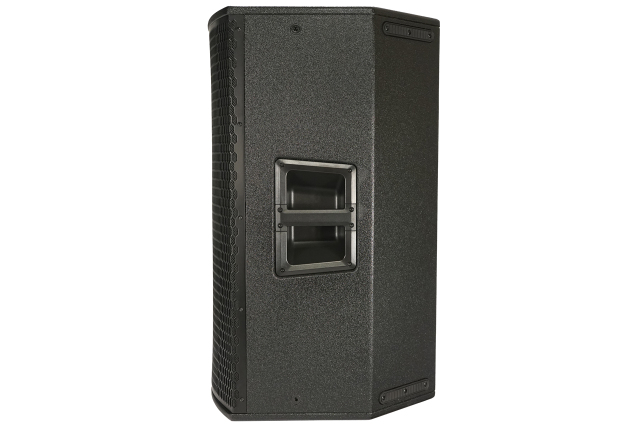

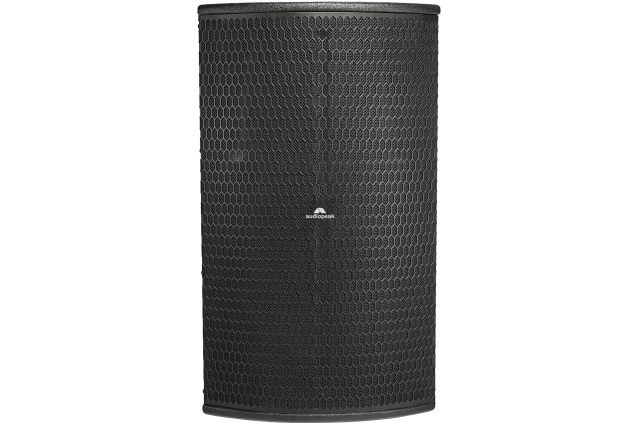

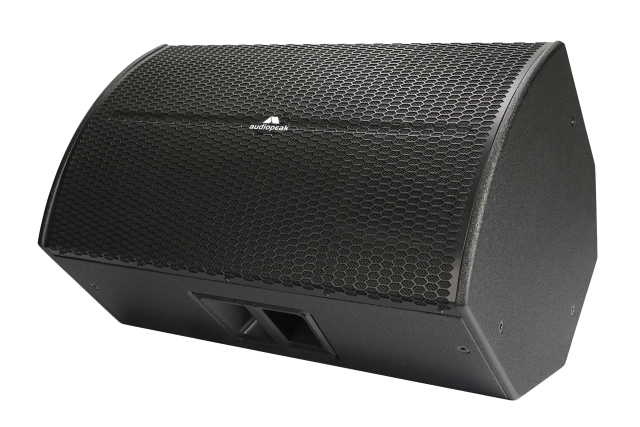

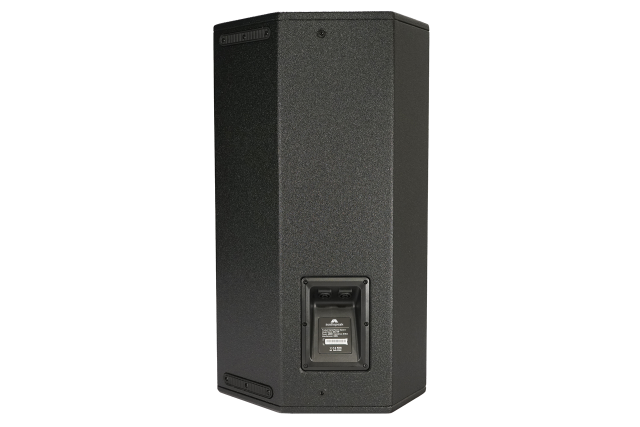

Dan-112P passive loudspeaker

Name: Dan-112P passive loudspeaker
Brand: Tinboo audio -Pro audio expert
Availability: InStock
Rating: 5 (1 reviews)

Dan series,We proudly introduce a wide variety of passive PA system speakers, covering every price point, power rating and size. You're guaranteed to find something that suits fixed installation and touring performance place such as bar, nightclub, multi-functional hall, museum, house of worship, commercial announcements, lecture, wedding, etc.

Get A Quote

OVERVIEW

With years of in-depth dedication to the professional audio industry, Audiopeak upholds the core mission of"Restoring the Authenticity of Original Sound, Empowering Every Auditory Feast" . We are committed to delivering high-quality, highly reliable professional audio products and integrated sound reinforcement solutions for global users. Always staying true to our acoustic aspiration, we integrate cutting-edge technology with exquisite craftsmanship. Every procedure, from product R D and component selection to production and testing, is subject to stringent quality control, aiming to deliver the purest and most immersive sound experience.

Specifications
Download

SPECIFICATIONS			Dan-112P
Frequency response(-6dB)			50Hz-20KHz
Direction (HxV)			100º x 60º
Maximum SPL Output (@1m)			128dB
Power amplifier	Type		Class D (digital amplifier)
	Input impedance		10 kΩ balanced to ground
	Max power		2000W
	Cooling		temperature controlled variable speed fan
	protection		DC,Over heat,Over load,Over voltage, Short circuit,Soft start.Output limit
PHYSICAL
Component hight			Ferried,1.75"VC.
Component Low			175mm magnet 3.0 voice coil
Connectors		Audio	1 XLR + 1 Link Out
		Ethernet	1 EtherCon + 1 Link Out (RJ 45 Socket)
		Mains	1 Powercon + 1 Link Out
Cabinet Material			Baltic birch plywood
Cabinet Finish			Black polyurea coating
Grill			Customized Iron design
Installation Points			14 x M8 threaded points
Pole Mount			35 mm socket
Net weight(Kg)			22
Net Dimension(mm)			370605380

123

The Sound That Defines a Successful Show

In a real live event,a sound system must do more than simply be loud. It needs to deliver:Clear and natural vocalsEven sound coverage across the audienceStrong and controlled low frequency performanceStable output for long working hoursThat is the value of a professional audio system. Whether for concerts, music festivals, touring events, or large-scale performances,consistent and controlled sound coverage is the key to a successful show.

Where Sound Becomes Experience

When the lights come onand the music begins, the audience is not just listening to sound —they are feeling the energy. Clear vocals that reach every corner,rich mids that bring music to life,and deep, powerful bass that hits the crowd with impact. A professional sound system does more than play music.It creates the atmosphere, drives the emotion,and turns a performance into a real experience. We do not just provide audio equipment.We provide sound solutions that make the whole event come alive.
