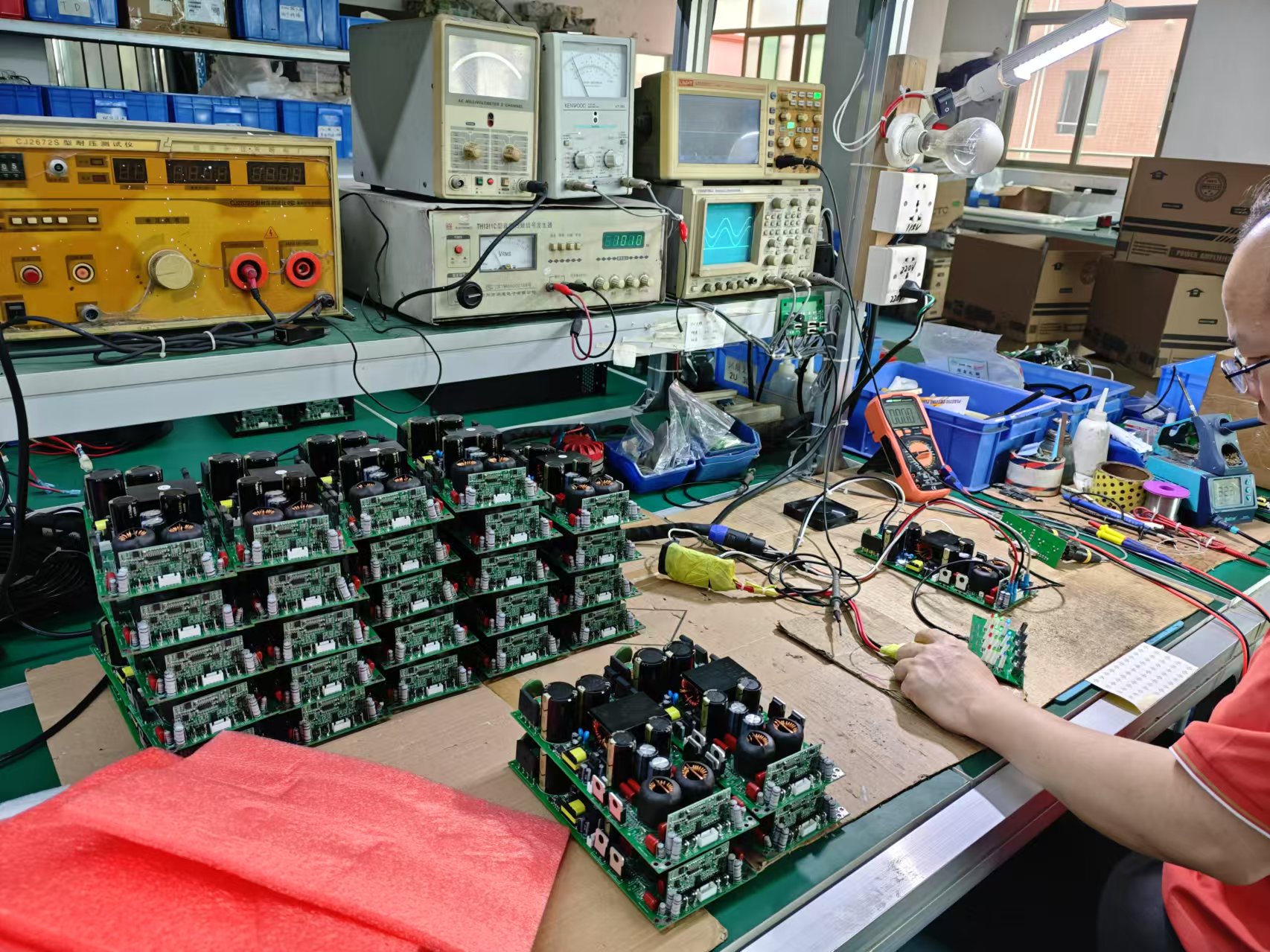

1.Gather Equipment
Signal Generator: To provide a test tone (typically a sine wave at 1 kHz).
Oscilloscope: To visualize the signal and measure voltage accurately.
True RMS Multimeter: For measuring the RMS voltage if an oscilloscope is not available.
Load Resistor: This should match the impedance the amplifier is rated for (common values are 4 ohms, 6 ohms, or 8 ohms) and must be capable of handling the power output of the amplifier.
Amplifier: The device under test.

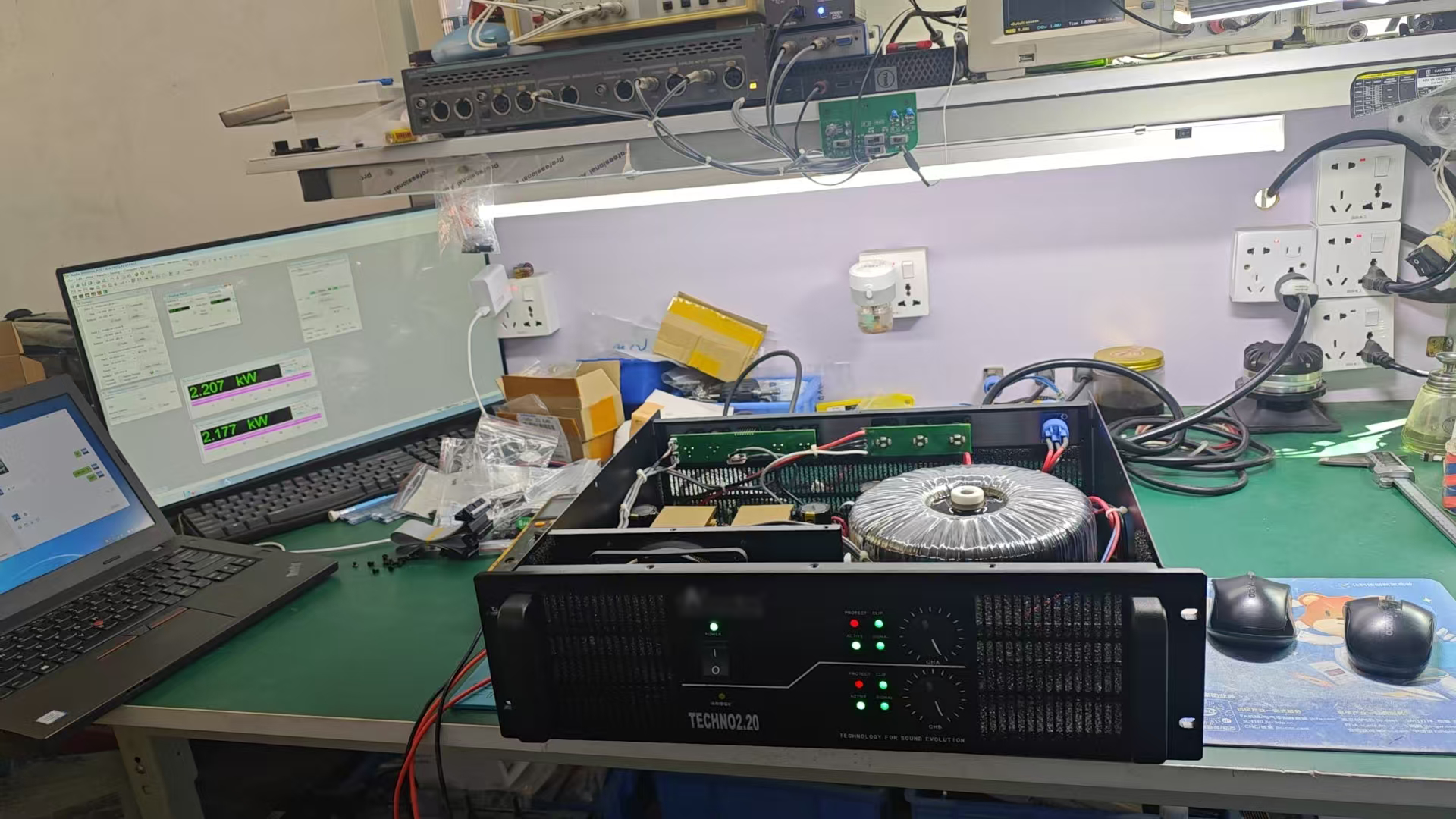

2. Set Up the Test
Connect the Signal Generator to the Amplifier Input: Make sure the signal generator produces a sine wave tone, typically 1 kHz.
Connect the Amplifier Output to the Load Resistor: Use proper cables and ensure a secure connection to avoid any measurement errors.
Attach the Oscilloscope Across the Load Resistor: This will help you visualize and measure the output signal from the amplifier.

3. Configuring the Signal
Generate a 1 kHz Sine Wave: Set the signal generator to output a 1 kHz sine wave at a low amplitude. Gradually increase this until the amplifier reaches its maximum undistorted output.
Monitor the Signal: Use the oscilloscope to monitor the output. Look for a clear sine wave. Distortion indicates you've exceeded the amplifier’s operational limits.
4. Measuring the Voltage
RMS Voltage Measurement: Measure the peak-to-peak voltage using the oscilloscope. If using a true RMS multimeter, directly read the RMS voltage across the load.
Calculate the RMS Voltage: If using an oscilloscope, convert the peak-to-peak voltage (( V_{p-p} )) to RMS voltage:
[
V_{RMS} = \frac{V_{p-p}}{2\sqrt{2}}
]
Alternatively, if measuring peak voltage (( V_p )):
[
V_{RMS} = \frac{V_p}{\sqrt{2}}
]
5. Calculate RMS Power
Using the RMS voltage (( V_{RMS} )) and the load resistance (( R )):

[
P_{RMS} = \frac{V_{RMS}^2}{R}
]

6. Verification
Double-Check the Connections and Measurements: Ensure all the connections are secure and measurements are accurate.
